Nexus online reader – High security level

Prima’s online Nexus readers are some of the key components within the FlexAir^® system, and are essential to use in order to be able to deliver the high security level that FlexAir^® warrants. The online Nexus readers are connected to the core of the system – the Alpha central. The central will automatically update the readers with the most recent access rights. When an access tag or card is placed in front of the reader, the central will determine whether the tag or card has access while saving the event in its event log. Logged events will appear in the Nova software immediately afterwards.

The online Nexus is the optimal reader for doors with high traffic and/or high security needs. These readers are often used at main entrances, staff entrances and main doorways. The Nexus reader will clearly indicate if the users’ tag or card has access or not by using a sound signal as well as a red/green LED light. The backlights also ensure that you can always see the reader clearly regardless of the time of day.

Download Brochure

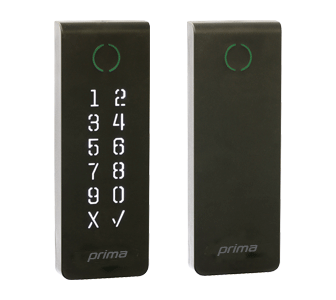

With or without keypad

Prima’s online Nexus reader is available with or without a keypad. The reader with a keypad offers the possibility to use a self-selected PIN-code as extra security in addition to reading a smart access tag or card. The keypad has touch buttons, and there is therefore no mechanical contact or moveable components that need to be replaced over time. The online readers are equipped with EST (Energy Saving Technology), which reduces the power usage with up to 50% in comparison to other readers on the market. The Nexus reader is IP 65 classified and is made of polycarbonate, which is both vandal-proof and flame-resistant. The modern and slim design makes it possible for the reader to be integrated into all types of environments, and it can even be fitted into very narrow frame profiles.

1

2

3

4

nexus online prima - Nexus Online Reader

* Place the mouse over the picture to read more about the Nexus reader

Advantages of a Nexus online reader

All doors can be opened and locked from a computer through a Nova software interface
Firmware updates are always available via the Alpha central
Automatic time-controlled door locking/unlocking
Encrypted data is shared between readers and the Alpha central via RS485-BUS
Secure buildings/offices/apartments around the clock
Power reducing EST ® (Energy Saving Technology) saves up to 50% in comparison to normal usage
Traffic counting measures and anti-pass back for extra security
Immediate updates of your access rights

Extra security

Prima offer two types of anti-vandal shields to offer extra protection and security in areas where there is a high risk of vandalism or rough usage of the readers.

The first solution consists of fitting the reader behind an anti-vandal shield with a Lexan plate, which will protect the reader from vandalism. This solution is especially suitable when installing MIFARE readers as well as the usual Nexus P and Nexus M installations where it is desirable to add the vandal protection at a later stage.

The other solution is to place an external reader safely inside the building, and to connect this to an antenna fitted behind an anti-vandal shield made out of stainless steel. This anti-vandal protection can only be used in connection with a Prox reader.

Technical Specifications

Dimensions (B x H x D)	54mm x 149mm x 15mm
Supply voltage	Min 9V DC – Max. 24V DC
Power supply	72 mA at 14V DC, 1W, with keypad 180 mA at 14V DC, 2.5W
Max power supply	150 mA at 14V DC, 2.1W, with keypad 200 mA at 14V DC, 2.8W
Operating temperature	−20°C to +70°C
Cable length	3m
Recommended installation height	130-160cm
Max. cable distance to central	200m
Warranty	2 years
Available versions	Nexus M (MIFARE) Nexus MK (MIFARE with keypad) Nexus MW (MIFARE to be incorporated behind window in the door stations/info modules) Nexus P (Prox) Nexus PK (Prox with keypad) Nexus PW (Prox to be incorporated behind window in door stations/info modules)
