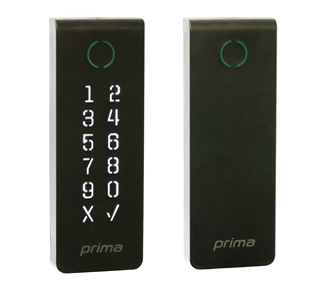

Nexus Offline reader – The reader for secondary doors

The Nexus offline reader is ideal for securing secondary doors, such as doors for individual offices server rooms, storage rooms, etc. The offline Nexus reader is also ideal for installations where wiring would be complicated and in cold climates, which is unsuited for battery driven online readers. The Nexus offline reader is available with or without a keypad, which makes it possible to either access the door simply with a PIN-code or add an additional level of security on top of the access tags and cards.

Download Brochure

Offline readers with a lot of functions

The Nexus offline readers offers a great solution when needing simple, fast and secure access control with simple installation and without long cables or wiring. However, an offline solution requires at least one online reader in the system that can update the access tags and cards with the current access rights.The Nova software can be defined to reset all access rights to offline readers every, day, week, month, etc. If users need access to an offline door, they must first update their access tag or card at an online reader. This feature ensures that old access tags and cards lose access rights to areas they no longer have access to.

1

2

3

4

Advantages of a Nexus offline reader

Easy identification of access tags and cards at a distance of 3-10 centimeters.
Made in vandal-proof and flame retardant polycarbonate with insulation class IP65 that is well suitable for outdoor use
Internal log of visitors
Built-in ”tamper sensor” with red/green signaling LEDs and a buzzer
Backlit keypad that makes the reader visible and easy to use in the dark
EST (Energy Saving Technology)
Encrypted data between readers and offline controller via RS485-BUS
Includes a timer to control user access at specific time intervals

Extra security

In areas with a high risk of vandalism or forceful usage of the readers, an anti-vandal shield in polycarbonate protects the reader against trashing, cuts and scratches. The Nexus offline readers are also installed with an offline controller with a real time clock and a battery-backup to make it possible to access doors even during powercuts.

Technical Specifications

Dimensions (B x H x D):	54mm x 149mm x 15mm
Supply voltage:	Min 9V DC – Max. 24V DC
Power consumption:	72 mA at 14V DC, 1W, with keypad 180 mA at 14V DC, 2.5W
Max power consumption:	150 mA at 14V DC, 2.1W, with keypad 200 mA at 14V DC, 2.8W
Operating temperature range:	−20°C to +70°C
Cable length:	3m
Recommended installation height:	130-160cm
Max. cable distance to the central:	200m
Warranty:	2 years
Available versions:	Nexus M (MIFARE) Nexus MK (MIFARE with keypad)
